Yealink SIP-T20P

+2

Yealink SIP-T20P

Store/Telephony Products/VoIP/VoIP SIP Phones

Product Details

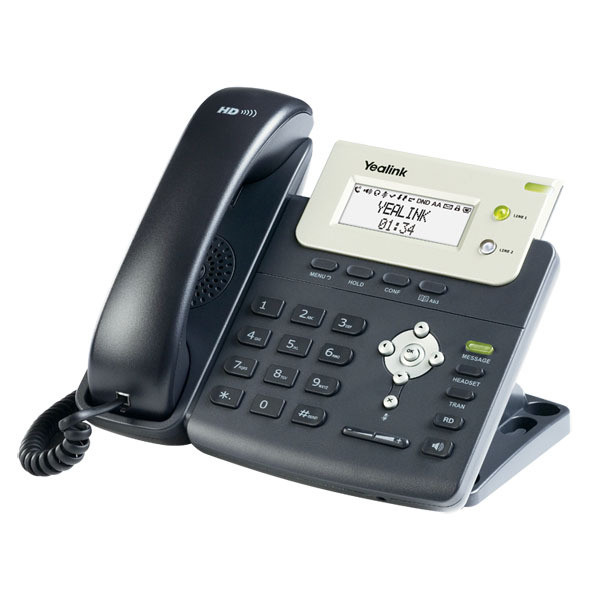

The Yealink SIP-T20 is an entry-level 2 line VoIP HD phone. It is equipped with the leading TI TITAN chipset, 2x15 characters LCD, a broad range of voice codecs (including high-definition - G.722), HD handset, and HD speaker. It can be ordered with AC, PoE, or both power options.

Yealink SIP-T20 Technical Specifications

Phone Features

2 VoIP accounts, hotline, emergency call
Call waiting, call transfer, call forward
Hold, mute, flash, auto-answer, redial
3-way conference, DND, speed dial
XML phonebook import/export, call history
Volume adjustment, ring tone selection
Tone scheme, System log
Multi-language (more than 20)

IP PBX System Integration

Dial plan, dial-now
Voicemail, MWI
Intercom
XML phonebook
Call park, call pickup
Distinctive ringtone

Codecs and Voice Features

Wideband codec: G.722
Narrowband codec: G.711, G.723.1, G.726, G.729AB
VAD, CNG, AEC, PLC, AJB, AGC
Full-duplex speakerphone with AEC

Network Features

SIP v1 (RFC2543), v2 (RFC3261)
NAT Traversal: STUN mode
DTMF: In-Band, RFC2833, SIP Info
Proxy mode and peer-to-peer SIP link mode
IP Assignment: Static/DHCP/PPPoE
Bridge/router mode
TFTP/DHCP/PPPoE client
Telnet/HTTP/HTTPS server
DNS client
NAT/DHCP server

Management

FTP/TFTP/HTTP/PnP auto-provision
Configuration: browser/phone/auto-provision
Direct IP call without SIP proxy
Dial number via SIP server
Dial URL via SIP server

Security

HTTPS (server/client)
SRTP (RFC3711)
Transport Layer Security (TLS)
VLAN (802.1 pq), QoS
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/user configuration mode

Physical Features

TI TITAN chipset
3-line LCD with an icon line and 2x15 characters lines
31 keys including 9 function keys
4 LEDs: 1xpower, 2xline, 1xmessage
1xRJ9 handset port
1xRJ9 headset port
2xRJ45 10/100M Ethernet ports
Wall-mounted
Power adapter: AC 100~240V input and DC 5V/1.2A Output- choose power option that includes AC
Power over Ethernet (IEEE 802.3af) - choose power option that includes PoE
Power consumption: 1.4-2.6W
Net weight: 0.77kg
Dimension: 185 x 200 x 90mm
Operating humidity: 10~95%
Storage temperature: up to 60°C
